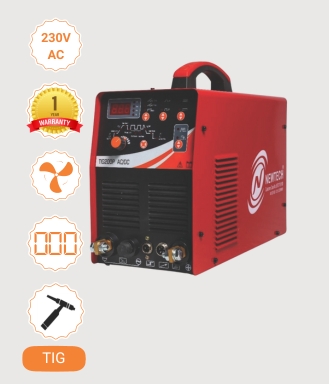

TIG 200P ACDC Welding Machine
The TIG 200P ACDC Welding Machine is a versatile welding solution designed for precision TIG welding with both alternating current (AC) and direct current (DC) capabilities. With a 200-amp output, it is ideal for welding various materials, including aluminum, steel, stainless steel, and other alloys. The machine features advanced pulse functionality for improved control and reduced heat distortion, making it perfect for delicate and detailed welding tasks. Equipped with modern inverter technology, the TIG 200P ACDC ensures stable arc performance and efficient energy use. Its intuitive controls and robust construction make it suitable for both professional welders and DIY enthusiasts, providing flexibility and high-quality welds for a wide range of applications.
| MODEL | TIG 200P AC/DC |
| Input Voltage (AC Supply) | AC230V |
| Rated Input Power (KVA) | 6.0 |
| Rated Duty Cycle | 40% |
| Output Current Adjustment (A) | 10-200 |
| Power Factor | 0.91
|
| Full Load Efficiency | 83%
|
| Tungsten Electrode Diameter (mm) | 1.6-2.4 |
| Welding Electrode Diameter (mm) | 1.6 to 3.15
|
| Pre Flow & Post Flow | Enabled |
| Down Slope & Up Slope | Enabled |
| Recommended Thickness Aluminum (mm) | 0.5-5.0 |
| Pulse Frequency | 0.5-100HZ |
| AC Frequency | 50-150Hz |
| Weight (Kg) | 14 |
| Dimensions (mm) | 410*210*290
|
| Accessories | |
| Welding Cable | 1 Set
|
| Earthling Cable & Argon Torch | 1 Set |
Features & Applications
- Low Power Consumption and high efficiency
- Applicable for ferrous and non ferrous metals
- Digital Preset Display
- Stable and Smooth Welding, Pass X-ray, Radiography Test
