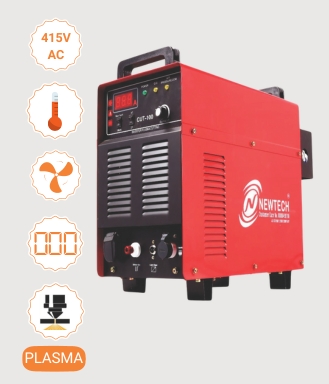

CUT 100 Air Plasma Cutting Machine
The CUT 100 Air Plasma Cutting Machine is a high-power, precision tool designed for industrial-grade metal cutting. With a 100-amp output, it delivers clean and accurate cuts on a range of metals, including steel, stainless steel, and aluminum. The machine features advanced inverter technology for stable arc performance, efficient energy use, and reduced spatter. Its rugged construction and user-friendly interface make it well-suited for professional and heavy-duty applications. The CUT 100 provides exceptional cutting speed and quality, making it ideal for demanding projects and large-scale metalwork.
| MODEL | CUT 100 |
| Input Voltage (AC Supply) | 415 Volt, 3-Phase |
| Rated Input Power (KVA) | 16 |
| Rated Duty Cycle | 100% |
| Output Current Adjustment (A) | 20-100 |
| Power Factor | 0.93 |
| Recommended Cutting Thickness | 25 mm |
| Torch Cooling | Air Cooled |
| Arcing Way | Non Touch |
| CNC Enabled | YES |
| Suggested Air Pressure | 4 - 6 kg/cm2 |
| Weight (Kg) | 33 |
| Dimensions (mm) | 290*560*415 |
| Accessories | |
| Plasma Torch, Electrode & Nozzle, Cap | 1 Set |
| Earth Clamp with 2.0 mtr Cable | 1 Set |
| Air Pressure Gauge | 1 Set |
Features & Applications
- Suitable for Carbon Steel, Stainless Steel, Cast Iron, Brass, Copper, Aluminum and other electric-conductive material.
- The machine has all signal output required by CNC control and is suitable for automatic cutting
- Clean and Smooth Cutting.
- Heavy duty for continuous work
- Low Power Consumption and high efficiency.
