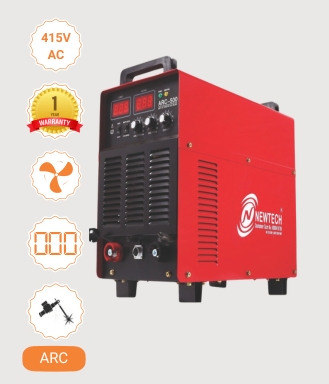

ARC 500 HD Welding Machine
The ARC 500 HD Welding Machine is a high-capacity, heavy-duty welder designed for industrial-grade performance. With a powerful 500-amp output, it is capable of handling demanding welding tasks on a variety of metals, including steel, stainless steel, and alloy materials. The machine utilizes advanced IGBT inverter technology to ensure stable arc performance and efficient energy use. Its rugged construction and intuitive controls make it ideal for professional welders working in harsh environments. Built for durability and reliability, the ARC 500 HD delivers consistent, high-quality welds for the most challenging projects.
| MODEL | ARC 500 HD |
| Input Voltage (AC Supply) | AC415V |
| Rated Input Power (KVA) | 21 |
| Rated Duty Cycle | 100%
|
| Output Current Adjustment (A) | 50-500 |
| Power Factor | 0.93
|
| Full Load Efficiency | 86%
|
| Welding Electrode Diameter (mm) | 2.00-4.00 |
| Weight (Kg) | 36 |
| Dimensions (mm) | 305*515*595
|
| Accessories | |
| Welding Holder &Lugs | 1 Set
|
| Earthing Cable | 1 Set |
Features & Applications
- Low Power Consumption and high efficiency
- Heavy duty for Industrial and Site Works
- Wide supply voltage range
- Stable and Smooth Welding, Pass X-ray, Radiography Test
- Hot start, Arc Force, over load protection and little spatter.
