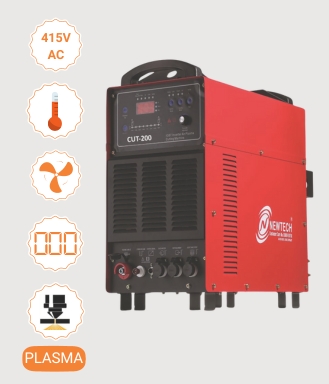

CUT 200 WCD Air Plasma Cutting Machine
The CUT 200 WCD Air Plasma Cutting Machine is a high-performance, industrial-grade tool designed for precise and efficient metal cutting. With a robust 200-amp output, it provides clean and accurate cuts on a range of materials, including steel, stainless steel, and aluminum. The machine features advanced inverter technology and a Water-Cooled Design (WCD) for optimal thermal management, ensuring stable arc performance and extended operation time. Its durable construction and intuitive controls make it ideal for heavy-duty and professional applications, offering superior cutting power and reliability for demanding projects.
| MODEL | CUT 200 WCD |
| Input Voltage (AC Supply) | 415 Volt, 3-Phase |
| Rated Input Power (KVA) | 27 |
| Rated Duty Cycle | 100% |
| Output Current Adjustment (A) | 20-100 |
| Power Factor | 0.93 |
| Recommended Cutting Thickness | 55 mm |
| Torch Cooling | Air /Water Cooled |
| Arcing Way | Non Touch |
| CNC Enabled | YES |
| Suggested Air Pressure | 4 - 6 kg/cm2 |
| Weight (Kg) | 63 |
| Dimensions (mm) | 350*735*825 |
| Accessories | |
| Plasma Torch, Electrode & Nozzle, Cap | 1 Set |
| Earth Clamp with 2.0 mtr Cable | 1 Set |
| Air Pressure Gauge | 1 Set |
Features & Applications
- Low Power Consumption and high efficiency
- Piercing, Hand Drag Cutting and Gouging
- Suitable for Carbon Steel, Stainless Steel, Cast Iron, Brass, Copper, Aluminum and other electric-conductive material
- The machine has all the signal output required by CNC control and is suitable for automatic cutting
- Heavy duty for continuous work
- Specially Designed for Investment Casting & heavy engineering
- The machine is controlled by digital parameters and can preset cutting parameters.
- The control process is precise and stable
- ARC striking current slow-up function can effectively prolong the service life of Plasma Torch and consumables
