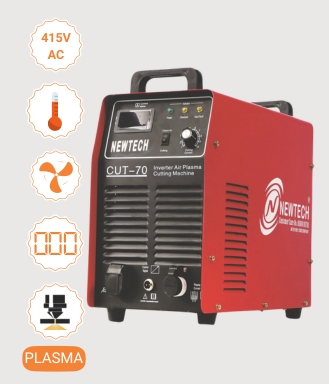

CUT 70 Air Plasma Cutting Machine
The CUT 70 Air Plasma Cutting Machine is a high-performance tool designed for precise and efficient metal cutting. With a 70-amp output, it delivers clean, accurate cuts on a range of metals, including steel, stainless steel, and aluminum. This machine features advanced inverter technology for stable arc control and energy efficiency. Its robust construction and user-friendly interface ensure reliability and ease of operation, making it ideal for professional workshops and industrial applications. The CUT 70 offers exceptional cutting power and speed, providing superior results for demanding metal cutting tasks.
| MODEL | CUT 70 |
| Input Voltage (AC Supply) | 415 Volt, 3-Phase |
| Rated Input Power (KVA) | 14 |
| Rated Duty Cycle | 60% |
| Output Current Adjustment (A) | 20-70 |
| Power Factor | 0.93 |
| Recommended Cutting Thickness | 12 mm |
| Torch Cooling | Air Cooled |
| Arcing Way | Touch |
| CNC Enabled | NO |
| Suggested Air Pressure | 4 - 6 kg/cm2 |
| Weight (Kg) | 20 |
| Dimensions (mm) | 335*470*340 |
| Accessories | |
| Plasma Torch, Electrode & Nozzle, Cap | 1 Set |
| Earth Clamp with 2.0 mtr Cable | 1 Set |
| Air Pressure Gauge | 1 Set |
Features & Applications
- Low Power Consumption and high efficiency
- Light Weight
- Wide supply voltage range
- Stable and Smooth Welding, Pass X-ray, Radiography Test
- Hot start, arc force, over load protection, Less spatters.
